Available in Select Markets

Canyon Ridge®

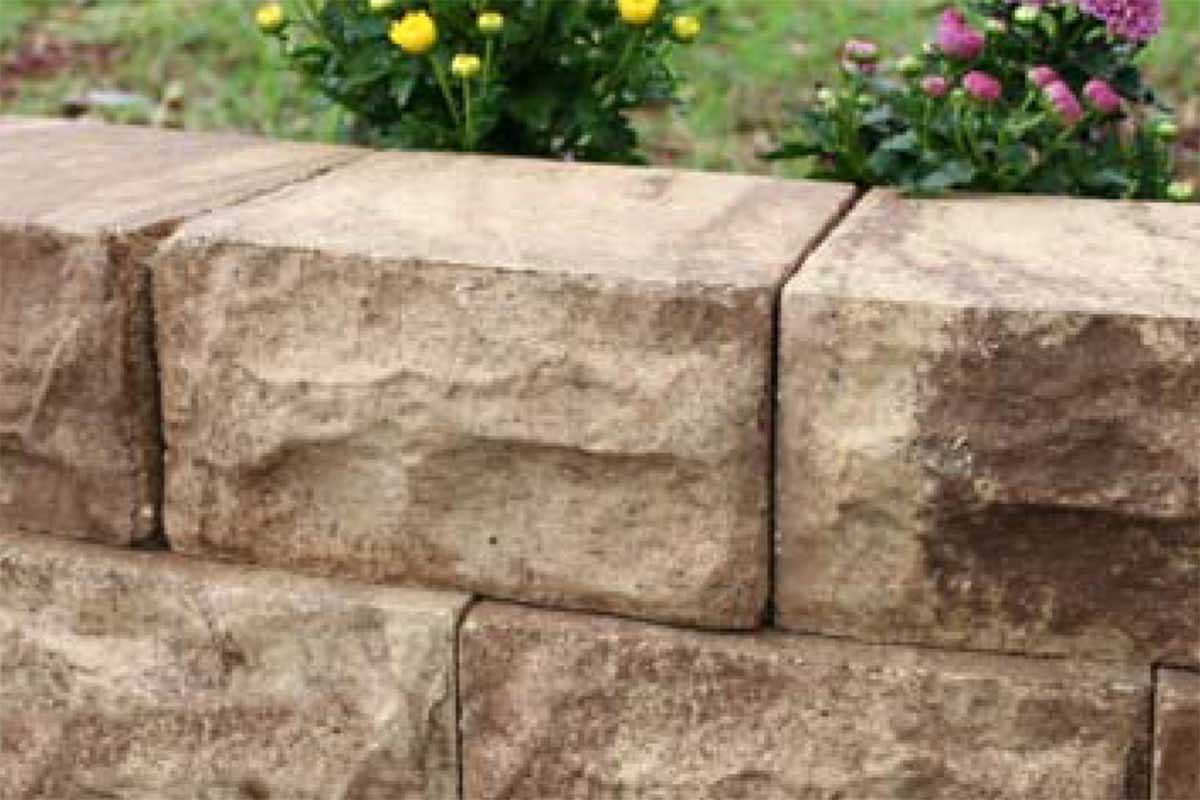

Keystone’s Canyon Ridge wall brings the weathered beauty of a natural stone retaining wall to your backyard. Utilizing a rear-lip installation method, Canyon Ridge easily builds straight, curved or terraced walls to fit the contours of your outdoor space.

Unit Specifications

Height Width Depth Weight
4" 8" 7" 14 lbs
102mm 203mm 178mm 6 kg

Unit color, dimensions, weight & availability varies by manufacturer.


Quick Project Estimator

Enter Wall Length and Wall Height (max height: 2ft)

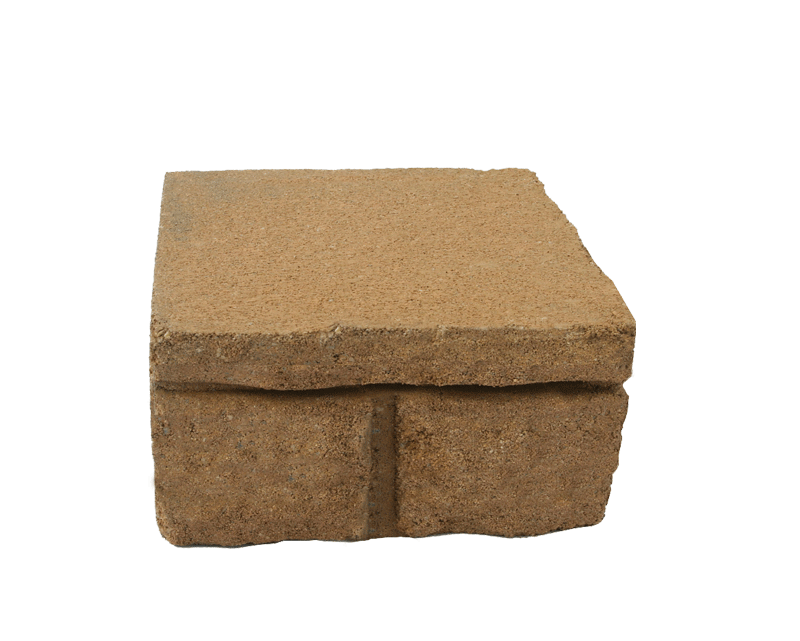

Unit_WindomLedgeston.pngWindom Ledgestone® face style available in select markets.

Use this chart to estimate the number of Canyon Ridge® units you will need.

WALL LENGTH (measured at wall face including curves)
WALL HEIGHT*4' (1.2m)8' (2.4m)12' (3.7m)16' (4.9m)20' (6.1m)24' (7.3m)
1 course61218243036
2 courses122436486072
3 courses136547290108
4 courses24487296120144
5 courses306090120150180
6 courses3672108144180216
Please Note: Maximum wall height not to exceed 2’ (610mm). This chart is based on site conditions which include a level grade, granular soil and no surcharge.
