Landscape Retaining Walls

Alameda® Wall

Keystone’s Alameda wall masterfully combines the beauty of naturally weathered river stone with durability and design flexibility. Ideal for walls up to 2-feet high, tiered walls, planters and fire pits; Alameda wall utilizes Keystone’s alignment pins, simplifying installation and increasing the durability of your project.

Enhance your outdoor space with the complementing Alameda edger and Alameda patio stone units.

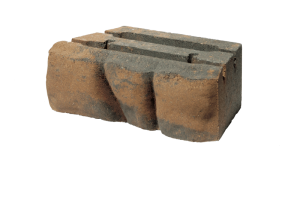

Unit Specifications*

Height Width Depth Weight
4" 12" 7" 16 lbs
102mm 305mm 178mm 7 kg

Unit color, dimensions, weight & availability varies by manufacturer.

Units/Sq.Ft.
3

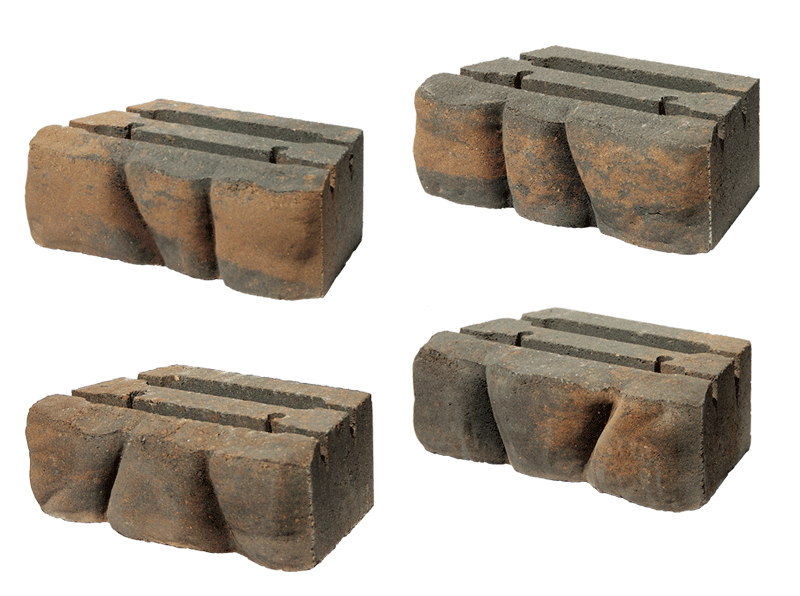

AlamedaWall_4units.png   *One unit size - four unique faces.

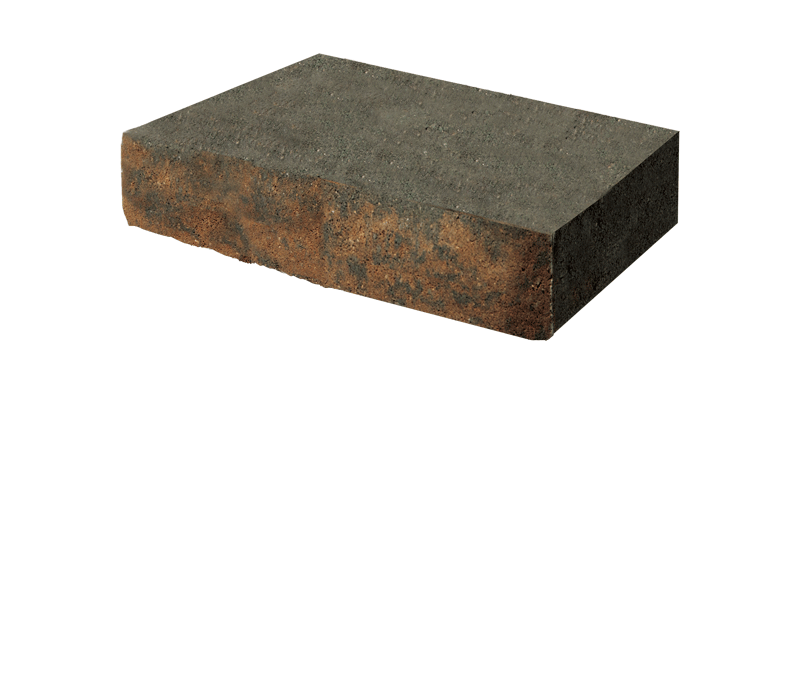

Cap Unit

Height Width Depth Weight
2" 12" 8" 14 lbs

Unit color, dimensions, weight & availability varies by manufacturer.

Units/Linear Foot
1

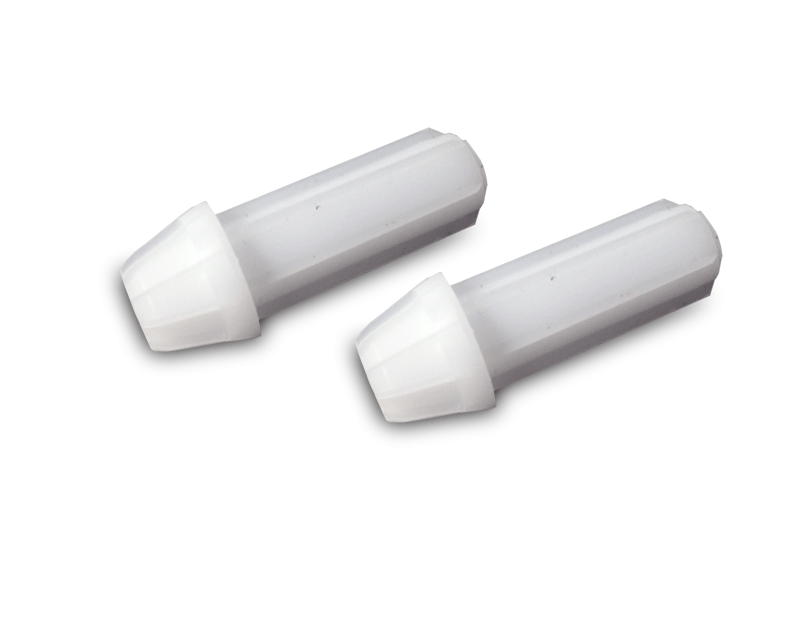

Pins-alignment.jpg Don't forget the pins!



Use this chart to estimate the number of Alameda® Wall units you will need.

WALL LENGTH (measured at wall face including curves)
WALL HEIGHT*4' (1.2m)8' (2.4m)12' (3.7m)16' (4.9m)20' (6.1m)24' (7.3m)
1 course4812162024
2 courses81624324048
3 courses122436486072
4 courses163248648096
5 courses20406080100120
6 courses24487296120144
Please Note: Maximum wall height not to exceed 2' (610mm). This chart is based on site conditions which include a level grade, granular soil and no surcharge.
